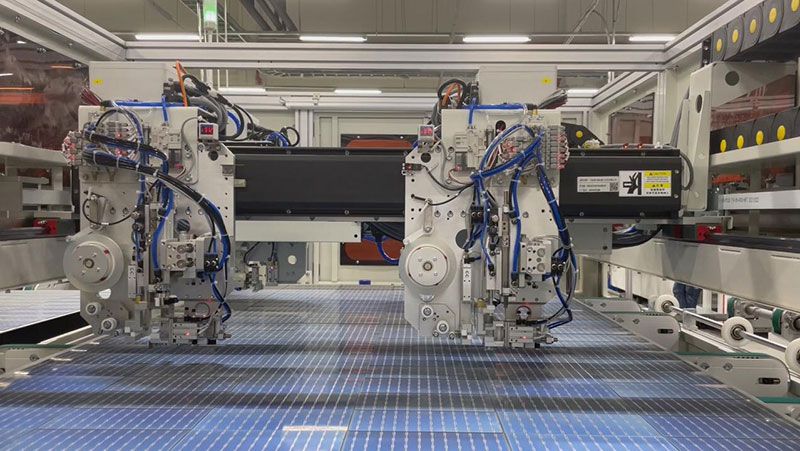

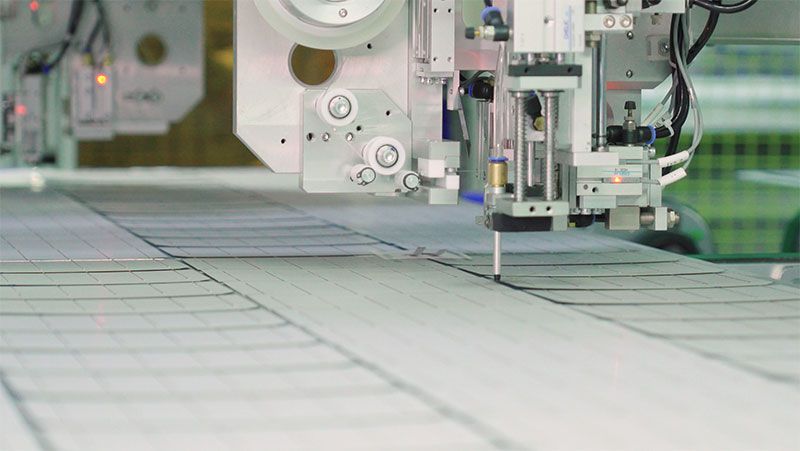

Automatic String Taping Machine
Used to automatically attach tape between cell strings to prevent shifting of strings
An automatic string taping machine is an indispensible machines in the solar panel production line. The string taping machine has a range of advantages like adjusting tape width and length, short tape replacement time, high positioning precision and easy operation, effectively lifting production efficiency and product quality.
Technical Parameters
| Item | Parameters |
| Cell size | 156-230mm |
| Panel size | (1,640-2,650)*(985-1,500) mm |
| Cycle time | 20s |
| Tape width & length | L: 15*22mm W: 5-10mm; compatible with centrifugal paper tape |
| Panel positioning accuracy | ±0.5mm |
| Tape replacement time | 2min |
| Tape positioning accuracy | ±0.5mm |
| Switch time | 5min |
| Glass specifications | (1,640-2,650)*985*1,500mm |
| Overall dimensions (L*W*H) | 3,150*1,920*1,800mm |
| Voltage | 380V 10A |
| Power | 4kW |
| Air pressure | 0.8MPa |
Features
- Simple and easy to switch tapes for higher production efficiency;
- Low power of 4kW to reduce energy consumption and increase eco-friendliness;
- Four heads work independently, and the failure of a single head will not affect the other three;
- The string taping machine can apply standard tape, rigid tape, centrifugal paper tape to meet different production needs.
Horad, as a specialist manufacturer of intelligent PV panel production line, is committed to providing complete PV module manufacturing solutions for global customers within the photovoltaic industry like solar panel manufacturers. Our portfolio includes not only automatic solar panel production lines, but also individual equipment for PV modules production, from glass loading equipment at the beginning to solar panel assembly and testing equipment at the end. If you are looking for complete solar turnkey lines for photovoltaic module manufacturing, Horad will be your reliable PV solar panel line supplier.
