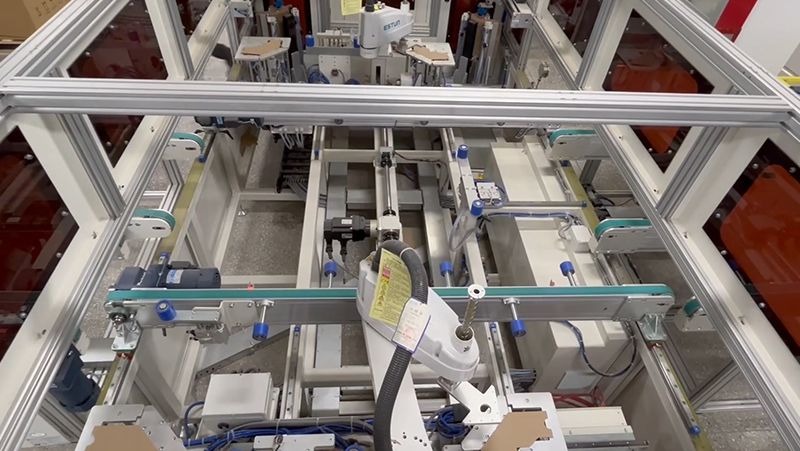

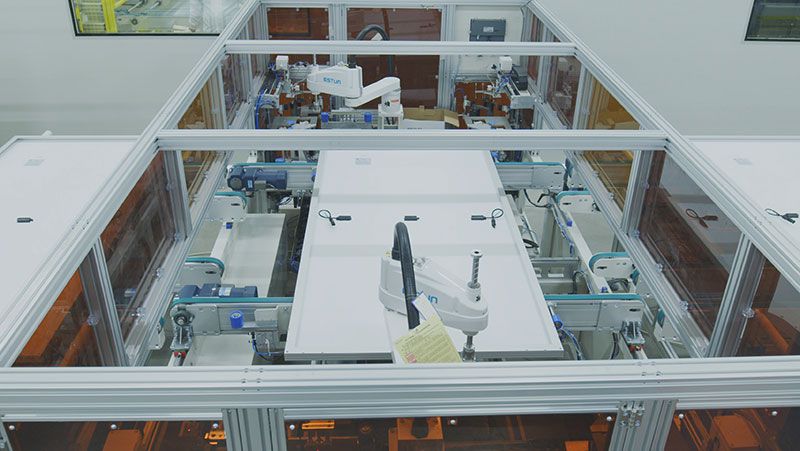

Automatic Corner Protector Inserting Machine

Used for automatic inserting of kraft/corrugated cardboard corner protectors for solar panel

  • Automatic Corner Protector Inserting Machine
  • Automatic Corner Protector Inserting Machine
Request a Quote
Technical Parameters
Item Parameters
Panel size (1,680-2,650)*(985-1,500)mm
Cycle time 20s
Frame height 25-50mm
Corner protection material Kraft paper/corrugated paper
Corner protection thickness 0.1-2mm
Stored corner protection boxes Height: 500mm
Loading time ≤3min
Panel positioning accuracy ±0.5mm
Overall dimensions (L*W*H) 4,000*2,000*1,700mm
Voltage 380V 10A
Power 3kW
Air pressure 0.8MPa
Features
  • Panel type switching is simple and easy to operate;
  • Featuring wide adoption and can be used for inserting paper, kraft paper and corrugated cardboard corner protectors for solar panels without frames;
  • Equipped with a visual inspection system to monitor the quality of the corner protection inserting.
Horad, as a specialist manufacturer of intelligent PV panel production line, is committed to providing complete PV module manufacturing solutions for global customers within the photovoltaic industry like solar panel manufacturers. Our portfolio includes not only automatic solar panel production lines, but also individual equipment for PV modules production, from glass loading equipment at the beginning to solar panel assembly and testing equipment at the end. If you are looking for complete solar turnkey lines for photovoltaic module manufacturing, Horad will be your reliable PV solar panel line supplier.
