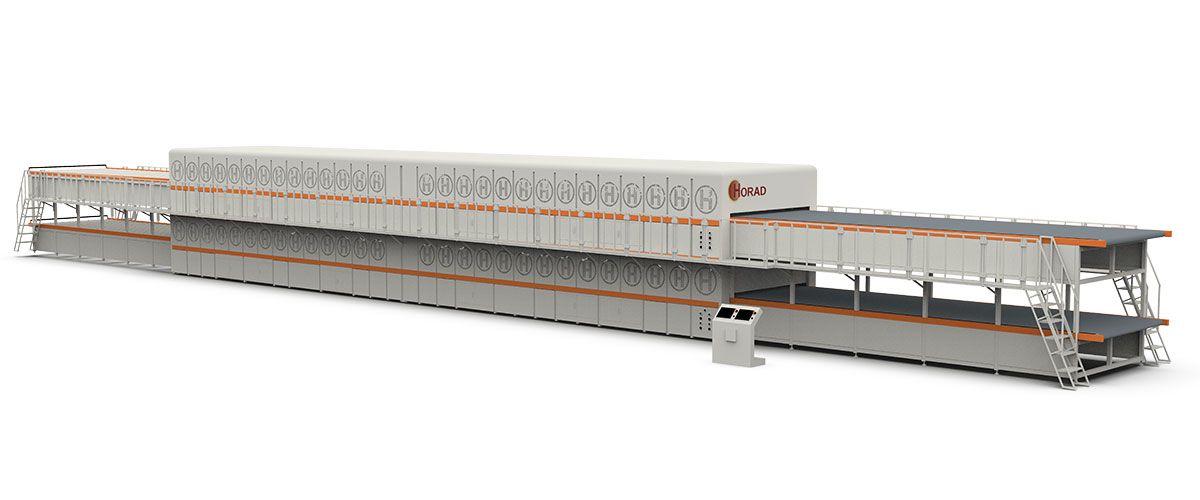

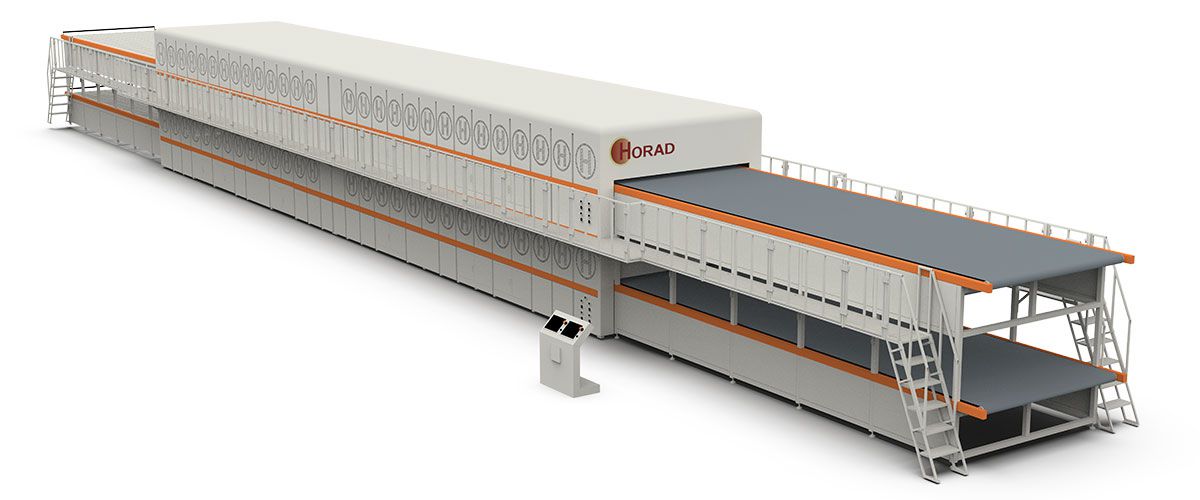

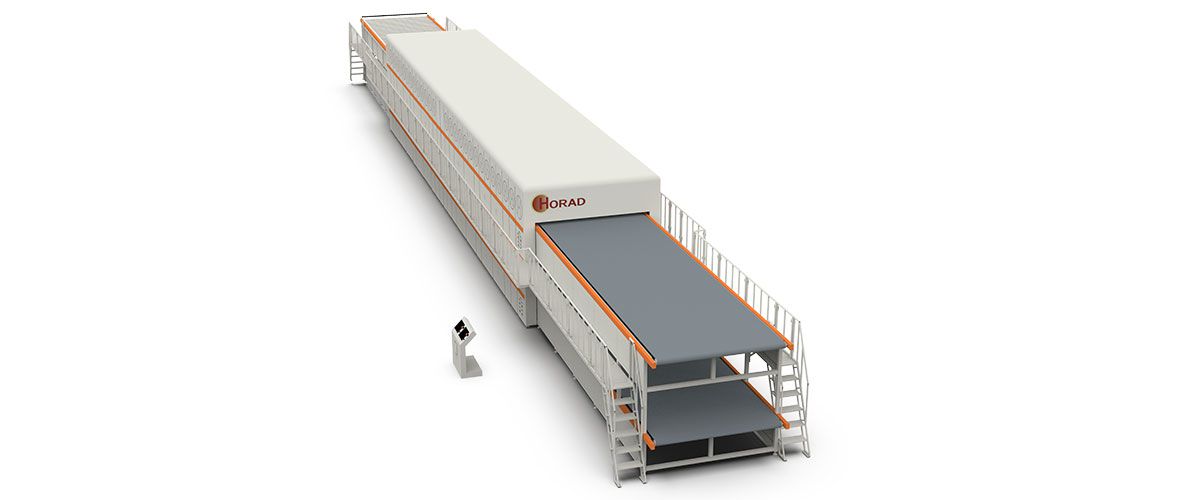

Double Layer & Double Chamber Laminator

Solar panel laminator

Double Layer & Double Chamber Laminator
  • Double Layer & Double Chamber Laminator
  • Double Layer & Double Chamber Laminator
  • Double Layer & Double Chamber Laminator
    • Request a Quote
    Technical Parameters
    Item Parameters
    Effective lamination area 2,700*8,700mm
    Capacity 250-300MW/year
    Utilization rate ≥99.5%
    Maximum vacuum degree 30Pa
    Operating temperature -180℃ room temperature
    Precision of temperature control ±1.5℃
    Temperature accuracy ±1℃
    Heating method Oil/electric heating
    Cooling method Fan cooling
    Compressed air pressure 0.6-0.8MPa
    Overall dimensions 38,000*3,650*3,600mm
    Features
    • Smaller footprint and higher throughput;
    • Movable touch screen for easy operation;
    • Adopting the double-layer and double-chamber structure. Each layer and chamber can be independently controlled;
    • Strong compatibility of being suitable for a variety of solar module production;
    • Other dimensions are also customizable as customers request.
    Horad, as a specialist manufacturer of intelligent PV panel production line, is committed to providing complete PV module manufacturing solutions for global customers within the photovoltaic industry like solar panel manufacturers. Our portfolio includes not only automatic solar panel production lines, but also individual equipment for PV modules production, from glass loading equipment at the beginning to solar panel assembly and testing equipment at the end. If you are looking for complete solar turnkey lines for photovoltaic module manufacturing, Horad will be your reliable PV solar panel line supplier.
