Automatic J-Box Potting Machine

Used for automatic glue potting of PV junction box

Automatic J-Box Potting Machine
  • Automatic J-Box Potting Machine
  • Automatic J-Box Potting Machine

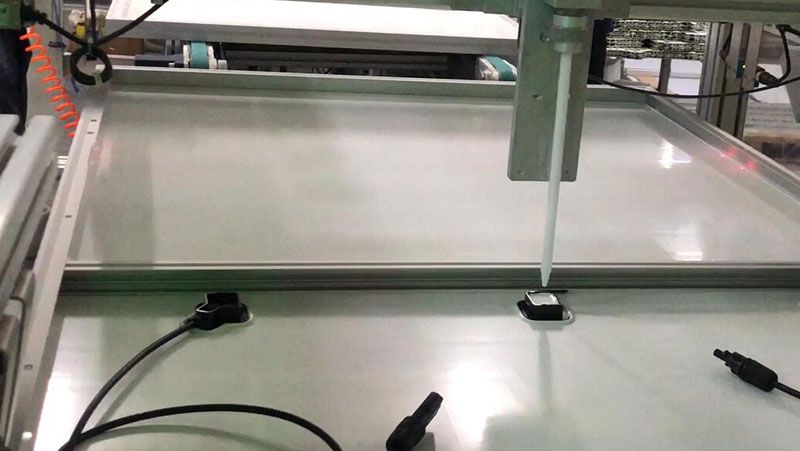

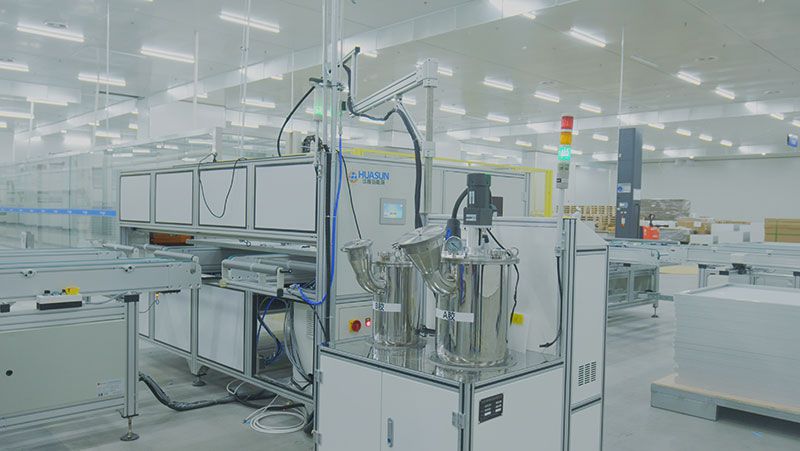

    • An automatic J-box potting machine is composed of conveying, positioning and potting systems. The potting machine is used for automatic glue potting of PV junction boxes. The servo motor and the potting head’s wide coverage area ensure that the J-box applicator can adapt to various junction box positions and the potting process is accurate and efficient. Moreover, 1-3 sets of potting heads can be customized to improve production efficiency as customers require.

    Request a Quote

    To conclude, the potting machine is an indispensable piece of solar panel production equipment with high automation.

    Technical Parameters
    Item Parameters
    Panel size (1,680-2,650)*(992-1,500)mm
    Cycle time ≤20s
    Panel positioning accuracy ±1mm
    Overall dimensions (L*W*H) 3,600*2,000*1,560mm
    Voltage 220V
    Power 1kW
    Air pressure 0.5MPa
    Weight 350kg
    Features
    • The overall structure is composed of conveying, positioning, and glue potting systems;
    • The potting system uses servo motor for fast and accurate movement and positioning;
    • As the potting head movement covers a big area, the head can adapt to various junction box positions;
    • 1-3 sets of potting heads can be customized according to customer requirement.
    Horad, as a specialist manufacturer of intelligent PV panel production line, is committed to providing complete PV module manufacturing solutions for global customers within the photovoltaic industry like solar panel manufacturers. Our portfolio includes not only automatic solar panel production lines, but also individual equipment for PV modules production, from glass loading equipment at the beginning to solar panel assembly and testing equipment at the end. If you are looking for complete solar turnkey lines for photovoltaic module manufacturing, Horad will be your reliable PV solar panel line supplier.
