Automatic Edge Taping Machine

Used for automatic tape edge banding of dual-glass solar modules

Automatic Edge Taping Machine
  • Automatic Edge Taping Machine
  • Automatic Edge Taping Machine
  • Automatic Edge Taping Machine

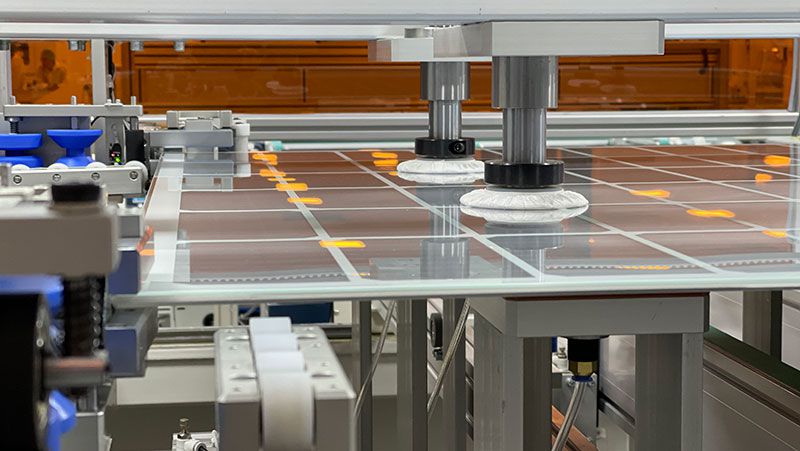

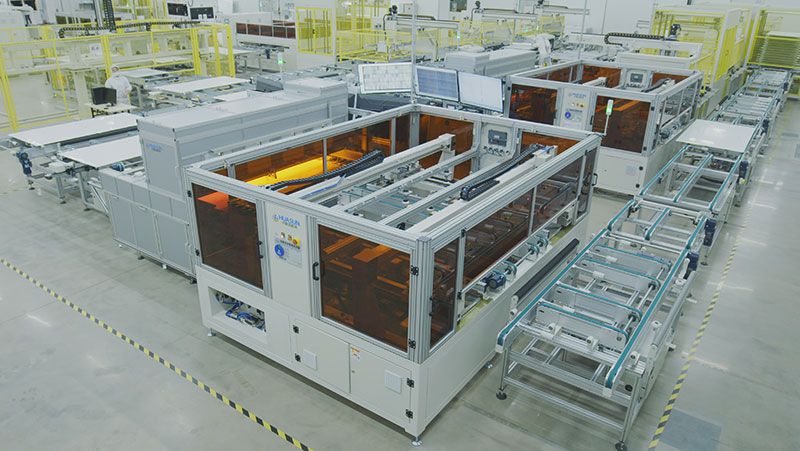

    • An automatic edge taping machine is used for automatic tape edge banding of dual-glass solar modules, adapting to different specifications of tapes. The edge bander can replace tapes quickly and easily and provides robust taping performance. Additionally, the energy-efficient taping machine is an indispensable machine in the solar panel line for mass production.

    Request a Quote
    Technical Parameters
    Item Parameters
    Panel size (1,644-2,650)*(985-1,500)mm
    Cycle time ≤20s
    Tape length Most specifications of tapes on the market
    Tape width 25-40mm
    Tape roll specifications Diameter < 300mm
    Panel positioning accuracy < 1mm
    Alignment method Cylinder blocking
    Tape replacement time < 2min
    Edge taping effect No wrinkles, wavy lines or damage
    Panel switching time ≤30min
    Overall dimensions (L*W*H) 4,100*22,900*1,850 mm
    Voltage 3 phase 5 wire 380V, 50Hz, AC±20%
    Power 6kW
    Air pressure 0.6-0.8MPa
    Features
    • Compatible with most general-purpose tapes on the market with an outer diameter of less than 300mm;
    • The panel lifting part adopts four cylinders, and the pressure wheel part can be fine-tuned for installation and debugging;
    • Edge taping accuracy: ≤±1mm (starting position);
    • Edge taping thickness of 4-7mm, and the edge taping machine can be customized for processing panels beyond the range;
    • The edge taping length is compatible with full-sealing tape and four-corner half-sealing tape.
    Horad, as a specialist manufacturer of intelligent PV panel production line, is committed to providing complete PV module manufacturing solutions for global customers within the photovoltaic industry like solar panel manufacturers. Our portfolio includes not only automatic solar panel production lines, but also individual equipment for PV modules production, from glass loading equipment at the beginning to solar panel assembly and testing equipment at the end. If you are looking for complete solar turnkey lines for photovoltaic module manufacturing, Horad will be your reliable PV solar panel line supplier.
