Robot String Layup Machine
Used for automatically placing cell strings on the glass with a robotic system
Robot String Layup Machine
Used for automatically placing cell strings on the glass with a robotic system

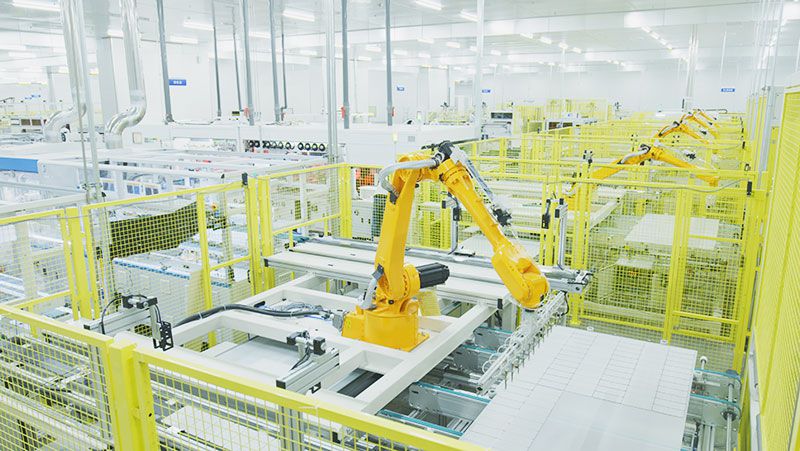

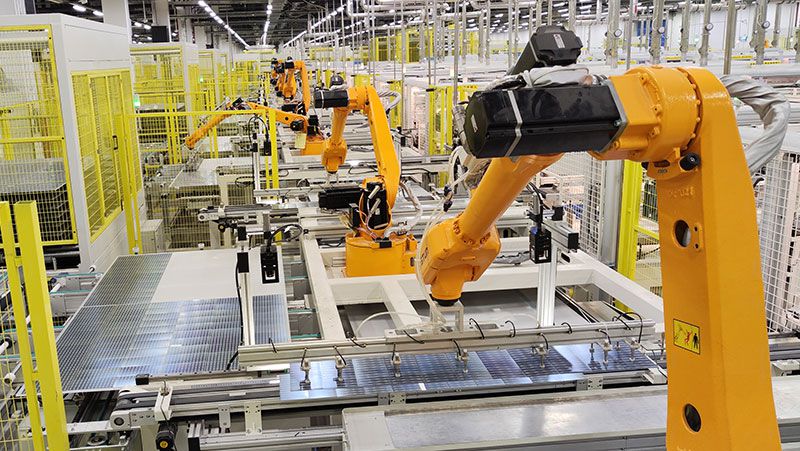

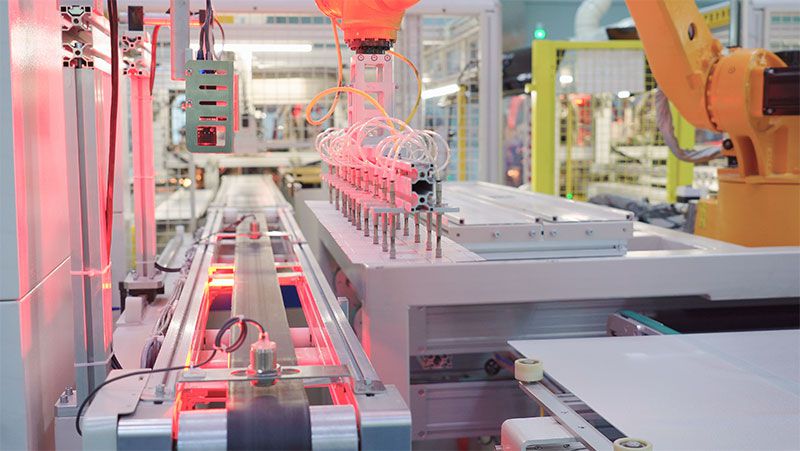

A robot string layup adopts leading machine vision technology and intelligent algorithms to rapidly and accurately identify the solar panel’s size and other information. The layup robot can efficiently produce accurate layup program according to different cell strings, boosting the production automation.
Technical Parameters
| Item | Parameters |
| Cell size | 156mm*156mm-210mm*210mm |
| Panel size | (1,680-2,650)*(992-1,500)mm |
| Cycle time | ≤6s/string |
| String positioning accuracy | ±0.2mm |
| Glass size | (1,680-2,650)*(992-1,500)mm |
| Overall dimensions (L*W*H) | 4,220*2,920*2,900mm |
| Voltage | 3 phase 5 wire 380V, 50Hz, AC±20% |
| Power | 3kW |
| Air pressure | 180L/min |
Features
- The contactless CCD positioning system is adopted for positioning accuracy;
- Automatic barcode placement for production efficiency and accuracy;
- The string delivery belt is driven by the servo motor to improve the transport stability;
- Full and half cell connection patterns can be switched with a button;
- Able to be connected with the mainstream stringer to produce A/B strings;
- Aligning with the stringer’s single-track 12-string production mode;
- Having the manual feed port for string repair;
- Adapting to horizontal and vertical-type panels
Horad, as a specialist manufacturer of intelligent PV panel production line, is committed to providing complete PV module manufacturing solutions for global customers within the photovoltaic industry like solar panel manufacturers. Our portfolio includes not only automatic solar panel production lines, but also individual equipment for PV modules production, from glass loading equipment at the beginning to solar panel assembly and testing equipment at the end. If you are looking for complete solar turnkey lines for photovoltaic module manufacturing, Horad will be your reliable PV solar panel line supplier.
