Vertical Sorting Machine
Automatic module sorter for sorting and sequencing of PV modules

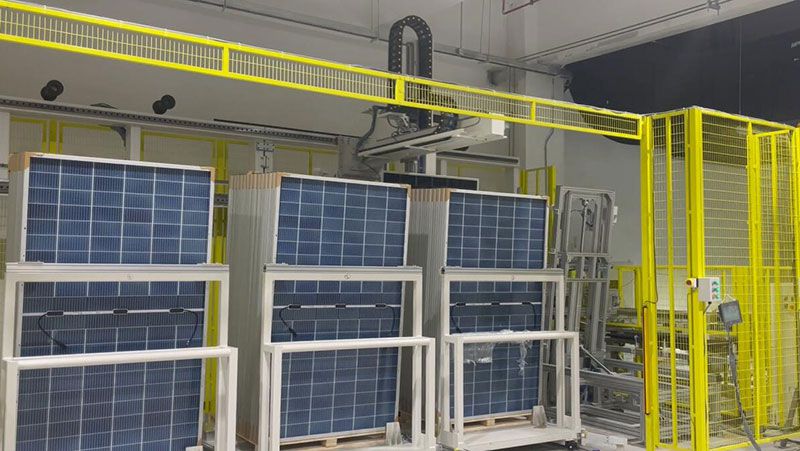

A vertical sorting machine is an automatic module sorter for sorting and sequencing of PV modules. The sorting machine supports flat and vertical sorting according to customer needs or panel powers. The panel sorter is suitable to be applied to 60, 72 and 78 single and dual-glass half panels as well as MBB panels.
Technical Parameters
| Item | Parameters |
| Panel type | Solar panels |
| Panel size | (1,680-2,650)*(992-1,680)mm |
| Cycle time | ≤20s |
| Panel sorting | Driven by servo motor |
| Panel grabbing | By cylinder gripper with suction cup |
| Stack number | Customizable according to customer needs |
| Switching time | ≤1h |
| Utilization rate | 99% |
| Overall dimensions (L*W*H) | 22,000*W*(3,500-5,000)mm (8 bins) |
| Voltage | 3 phase 5 wire 380V, 50Hz, AC±20% |
| Power | ≤5kW/h |
| Air pressure | 0.6-0.7MPa |
Features
- Capable of flat sorting and long-side and short-side vertical sorting;
- Equipped with a bin trolley;
- Supporting automatic packing or manual packing;
- Using self-developed 6-axis transplanting method to ensure the operation is simple, flexible and fully automatic without requiring personnels;
- automatically vertical turning applied to the fed materials of big size panels like 210mm;
- Adapting to framed panels and frameless panels.
- The touch screen supporting parameter setting;
- High-level protection system;
- Connected with the MES system with communication ports through which the pallet can be set.
Horad, as a specialist manufacturer of intelligent PV panel production line, is committed to providing complete PV module manufacturing solutions for global customers within the photovoltaic industry like solar panel manufacturers. Our portfolio includes not only automatic solar panel production lines, but also individual equipment for PV modules production, from glass loading equipment at the beginning to solar panel assembly and testing equipment at the end. If you are looking for complete solar turnkey lines for photovoltaic module manufacturing, Horad will be your reliable PV solar panel line supplier.
