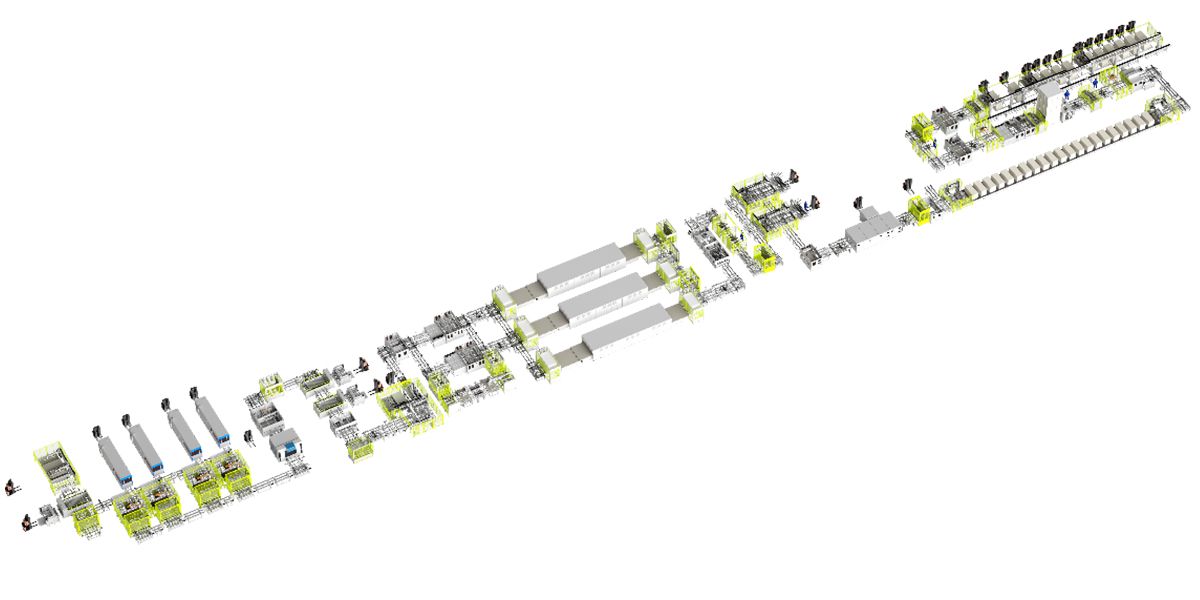

750MW Solar Panel Production Line

Turnkey solution for PV modules manufacturing

  • 300MW Solar Panel Production Line
    750 MW/year (22h, 330days)
  • 300MW Solar Panel Production Line
    190 modules/h
  • 300MW Solar Panel Production Line
    20-30 workers
  • 300MW Solar Panel Production Line
    Application: 5BB-12BB; M6-M12
  • 300MW Solar Panel Production Line
    Working noise: ≤70dBA.
300MW Solar Panel Production Line
  • Automatic Glass Loading Machine
  • Stringer Machines
  • Robot String Layup
  • EVA/TPT Cutting & Layup
  • Auto Edge Taping Machine
  • Curing Line/Curing Room
Discover more
    1. 300MW Solar Panel Production Line

    2. A 750MW solar panel line is an efficient production line for mass production of quality solar panels. The production line has large capacity and can adapt to a range of sizes and types of panels with different glass thickness. Additionally, the 750MW line also has an intelligent monitoring and control system with high automation for production data monitoring, improving efficiency and lowering cost.
      Request a Quote
Features
  • Efficient production: a 750MW solar panel line’s production capacity is 750MW per year. The 750MW line is suitable for mass production of solar modules.
  • Strong adaptation: the turnkey line can adapt to different sizes and types of PV panels, including PERC, HJT, TOPCon and so on.
  • Comprehensive inspection: the manufacturing line is equipped with a quality assurance system for all-round product quality monitoring and inspection.
  • Smart control: the intelligent MES control system can realize automatic adjusting, smart monitoring and remote management to control the entire manufacturing process.
  • Energy efficiency: the production line is designed to reduce energy consumption as much as possible, delivering less impacts to the environment.
PV Manufacturing Equipment List

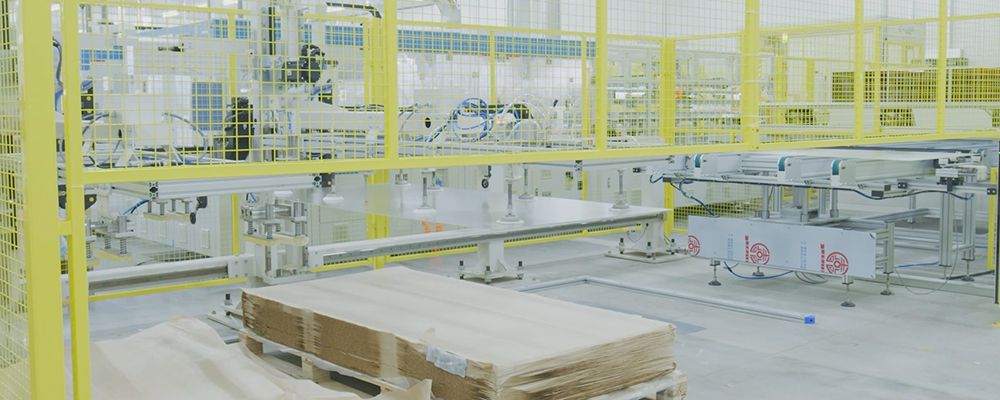

    1. Automatic Glass Loading Machine
    2. Automatic Glass Loading Machine An automatic glass loading machine works to supply glass rapidly by automatically load, position and transport glass.
    1. EVA Cutting & Layup
    2. EVA Cutting & LayupAn EVA cutting & layup machine can directly mix tailings with new materials through hot melting.
    1. Stringer Machines
    2. Stringer MachinesA stringer machine uses the robotic system to position, grab and place solar cells, and applies infrared welding and automatic cutting to different cell strings.
    1. Robot String Layup
    2. Robot String Layup An automatic layup machine uses a robot to grab cell strings and adopts the contactless CCD positioning system for positioning precision.
    1. Auto Bussing Machine
    2. Auto Bussing MachineAn automatic bussing machine adopts induction welding and can be applied to 5BB-12BB solar cells of 156-210mm.
    1. Auto String Taping Machine
    2. Auto String Taping Machine An automatic string taping machine can adjust tape width and length and features short tape replacement time and high positioning precision.
    1. EVA/TPT Cutting & Layup
    2. EVA/TPT Cutting & LayupAn EVA/TPT cutting & layup machine is used to cut and layup second EVA film and TPT backsheet with high precision cutting and layup technologies.
    1. Second Glass Loading & Placement Machine
    2. Second Glass Loading & Placement Machine A dual-glass loading & placement machine is used for dual-glass solar module production. It can adapt to different specifications of glasses and features a small size, consuming less space.
    1. EL & VI Tester
    2. EL & VI Tester An EL & VI tester can detect panel defects manually or with AI. Two inspection modes of EL and VI are available. The defects it can detect include cracks, broken grids, black spots, etc.
    1. Auto Edge Taping Machine
    2. Auto Edge Taping MachineAn automatic edge taping machine is used for automatic tape edge banding of dual-glass solar modules. It adapts to most tapes and features convenient tape replacement.
    1. Laminators
    2. Laminators An automatic laminator is a quality solar panel lamination machine and can be customized according to customer needs.
    1. Auto Trimming Machine
    2. Auto Trimming Machine An automatic edge trimming machine is used for automatic removal of burrs and exceed materials from PV module edges after lamination. The latest version also has an additional function of finer trimming.
    1. Auto Framing Machine
    2. Auto Framing Machine An automatic framing machine is used for automatic silicon dispensing and assembling of solar panel frames. It features short cycle time and high precision to meet various panel framing needs.
    1. Auto J-Box Soldering Machine
    2. Auto J-Box Soldering MachineAn auto J-box soldering machine is used for automatic soldering of PV junction boxes. It has rapid and accurate soldering capabilities to boost production efficiency.
    1. Auto J-Box Potting Machine
    2. Auto J-Box Potting Machine An auto J-box potting machine is composed of conveying, positioning and potting systems and used for automatic glue potting of PV junction boxes.
    1. Curing Line/Curing Room
    2. Curing Line/Curing Room A curing line/curing room uses motor as drive and sprocket and chain for transmission, ensuring the materials will not be discharged before the set time. The selection between feed priority and discharge priority is made based on the needs of customer.
    1. Auto Corner Grinding Machine
    2. Auto Corner Grinding MachineAn automatic corner grinding machine is used for automatic grinding of solar panel frame corners.
    1. Sun Simulator / IV Tester
    2. Sun Simulator / IV Tester A sun simulator provides a standard testing environment to know about the solar panel working conditions and conduct power and current tests on solar panels.
    1. HiPot Tester
    2. HiPot Tester An HiPot tester is an efficient and reliable machine used to test dielectric withstand and electrical insulation of PV modules.
    1. Auto Labelling Machine
    2. Auto Labelling MachineAn automatic labelling machine has 2-3 working heads for accurately labeling tags, anti-counterfeiting codes and barcodes.
    1. Auto Corner Protector Inserting Machine
    2. Auto Corner Protector Inserting MachineAn automatic corner protector inserting machine features wide adoption and can be used for inserting paper, kraft paper and corrugated cardboard corner protectors for solar panels without frames.
    1. Vertical Sorting Machine
    2. Vertical Sorting MachineA vertical sorting machine is an automatic module sorter for sorting and sequencing of PV modules. It is capable of various sorting methods like long-side and short-side flat sorting and vertical sorting.
Horad, as a specialist manufacturer of intelligent PV panel production line, is committed to providing complete PV module manufacturing solutions for global customers within the photovoltaic industry like solar panel manufacturers. Our portfolio includes not only automatic solar panel production lines, but also individual equipment for PV modules production, from glass loading equipment at the beginning to solar panel assembly and testing equipment at the end. If you are looking for complete solar turnkey lines for photovoltaic module manufacturing, Horad will be your reliable PV solar panel line supplier.
Three types of solar panel lines are available
