Automatic Edge Trimming Machine
Used for automatic removal of burrs and exceed materials from PV module edges after lamination

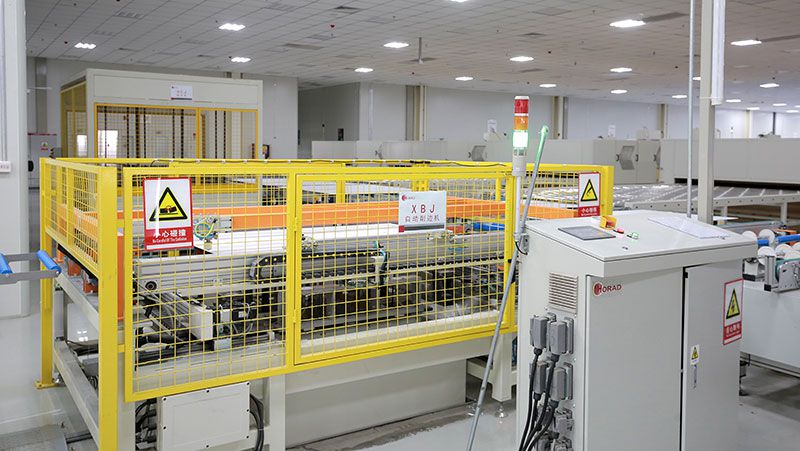

An automatic trimming machine is used to automatically remove burrs and exceed materials from PV module edges after lamination. The trimming machine can adapt to different sizes and shapes of panels and has a series of merits like high trimming quality, precision and speed, low noise and easy operation. Using the trimming machine can boost the production efficiency and product quality.
Technical Parameters
| Item | Parameters |
| Panel size | (1,580-2,650)*(1,000-1,500) mm |
| Cycle time | ≤20s |
| Tailing treatment | Motor rolling/cylinder clamping |
| Knife replacement time | ≤180s |
| Life of knife | ≥100,000 times |
| Positioning accuracy | ±1mm |
| Breakage rate | ≤0.001% (monthly average) |
| Blocking and aligning methods | The front cylinder for blocking, and the cylinders on both sides for aligning |
| Glass type | (1,580-2,650)*(1,000-1,500)mm |
| Overall dimensions (L*W*H) | 3,450mm*2,360mm*1,550mm |
| Voltage | 3 phase 5 wire 380V, 50Hz, AC±20% |
| Power | 4kW |
| Air pressure | 510L/min |
Features

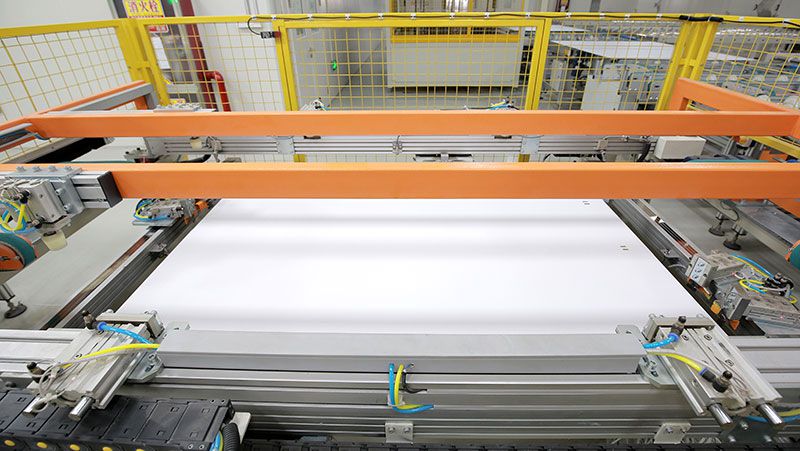

- The cutting surface of the leftover material is glossy, and there is no adhesion with the panels;
- There is storage space and a waste collection device inside the trimming machine for easier cleaning;
- Product specification can be changed on touch screen;
- The trimming machine can be automatically or manually operated and store a large quantity of data;
- The trimming equipment is driven by a servo motor and a synchronous belt and guided by a linear guide, ensuring positioning precision and operation stability.
Horad, as a specialist manufacturer of intelligent PV panel production line, is committed to providing complete PV module manufacturing solutions for global customers within the photovoltaic industry like solar panel manufacturers. Our portfolio includes not only automatic solar panel production lines, but also individual equipment for PV modules production, from glass loading equipment at the beginning to solar panel assembly and testing equipment at the end. If you are looking for complete solar turnkey lines for photovoltaic module manufacturing, Horad will be your reliable PV solar panel line supplier.
